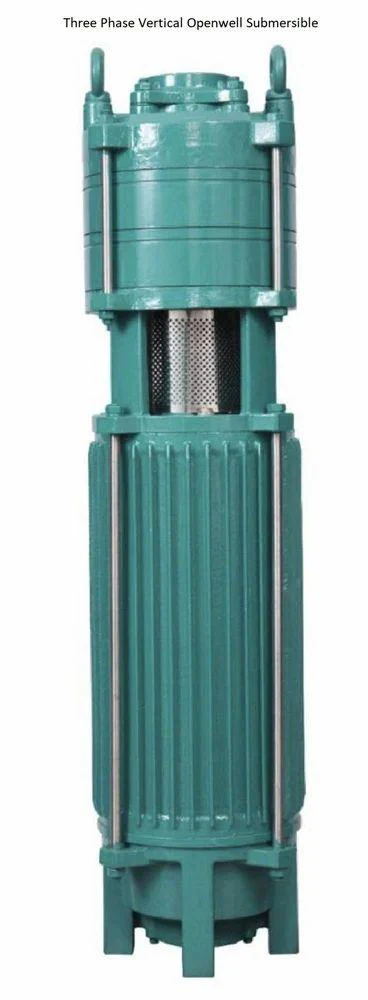

vertical openwell agricultural
vertical openwell agricultural
It is of submersible monoblock design which eliminates the problems pertaining to the suction and priming.
Applications
- Agriculture irrigation
- Commercial building service
- Public Water supply schemes
- Industrial water supply
- Rural water supply
Features
- Compactly designed pump set for easy handling and installation.
- Mono shaft Multi Stage construction
- High-grade cast iron for a better life even in heavy and contaminated water.
- Front & Back side carbon bearing with Stainless Steel Thrust Plate.
- CRNO M47 electrical sheet stamping for lower power consumption and higher product life.
- Advanced Hydraulic Design for highest energy efficiency in the pump set.
- Dynamically Balancing Rotating part to ensure minimum noise and vibration-free operation.
- Non-overloading power characteristic for safety of motor.
- Replaceable wearing parts.
- Highly durable water cooled rewindable motor.
Specifications
| Power | 5 to 50 HP |
|---|---|
| Voltage | Three phase 380-415 volts AC supply |
| Head | Max 100 meteres |
| Discarge | Max 1000 lpm |
| Speed | 2880 RPM |
